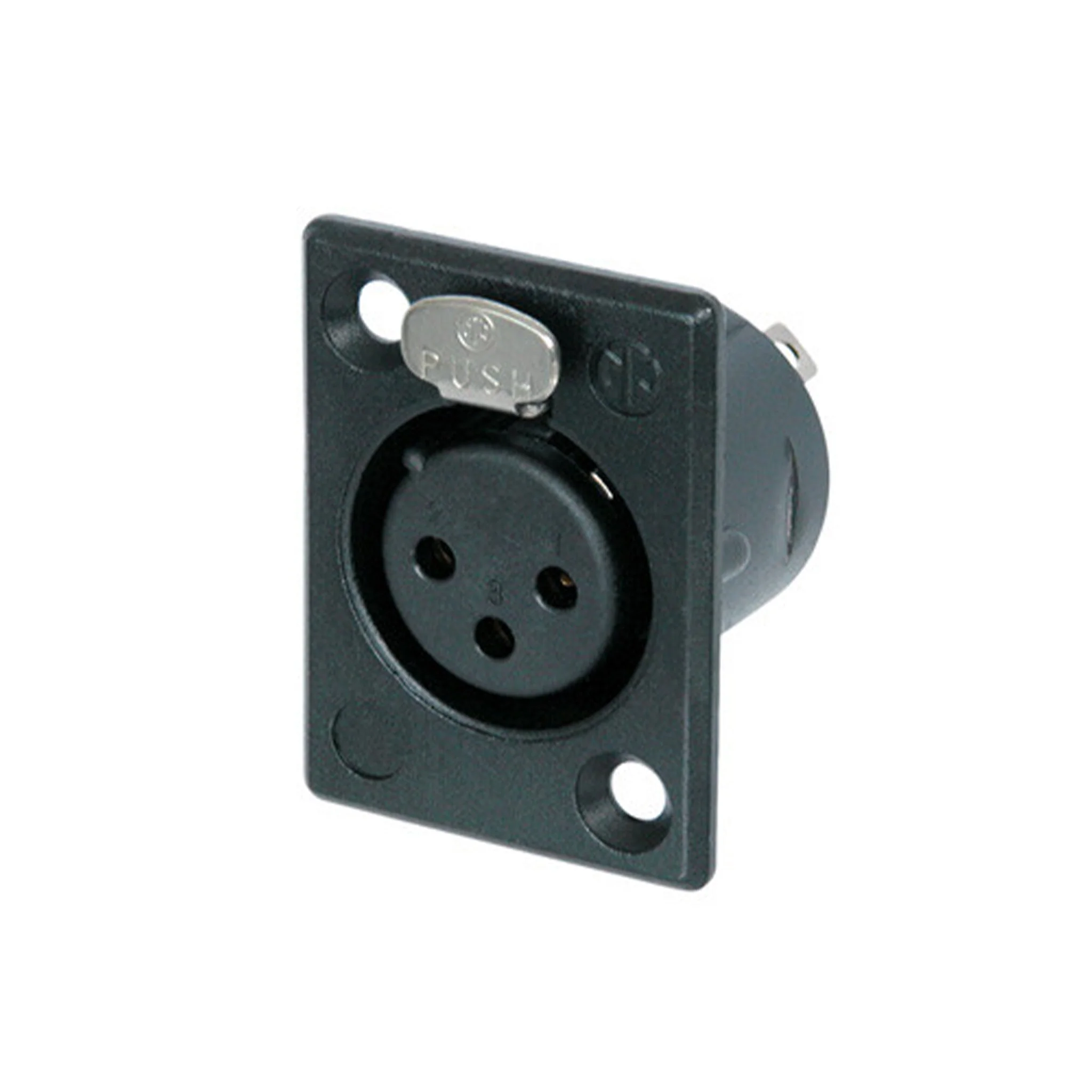

Neutrik NC3FP-1-BAG 3-Pole Female XLR Panel Mount Connector - Black
The Neutrik NC3FP-1-BAG is a compact, high-quality XLR panel mount connector designed for hard wiring. Its solder cups are large, making it easy to connect to switchcraft D*M and D*F as well as Cannon XLB2*31 and XLB2*32. Featuring a 3-pole female receptacle and a black metal housing with silver contacts, it is the smallest traditional style metal panel mount connector on the market. This connector boasts a capacitance of ≤4 pF and a contact resistance of ≤5 mΩ, with a dielectric strength of 1.5 kVdc. It has an insulation resistance of >10 GΩ and is capable of handling a rated current of 16 A per contact at a voltage of <50 V. With an insertion and withdrawal force of ≤20 N, it has a lifetime of over 1000 mating cycles.
$3.13
Original: $8.95
-65%Neutrik NC3FP-1-BAG 3-Pole Female XLR Panel Mount Connector - Black—
$8.95
$3.13
Description
The Neutrik NC3FP-1-BAG is a compact, high-quality XLR panel mount connector designed for hard wiring. Its solder cups are large, making it easy to connect to switchcraft D*M and D*F as well as Cannon XLB2*31 and XLB2*32. Featuring a 3-pole female receptacle and a black metal housing with silver contacts, it is the smallest traditional style metal panel mount connector on the market. This connector boasts a capacitance of ≤4 pF and a contact resistance of ≤5 mΩ, with a dielectric strength of 1.5 kVdc. It has an insulation resistance of >10 GΩ and is capable of handling a rated current of 16 A per contact at a voltage of <50 V. With an insertion and withdrawal force of ≤20 N, it has a lifetime of over 1000 mating cycles.
